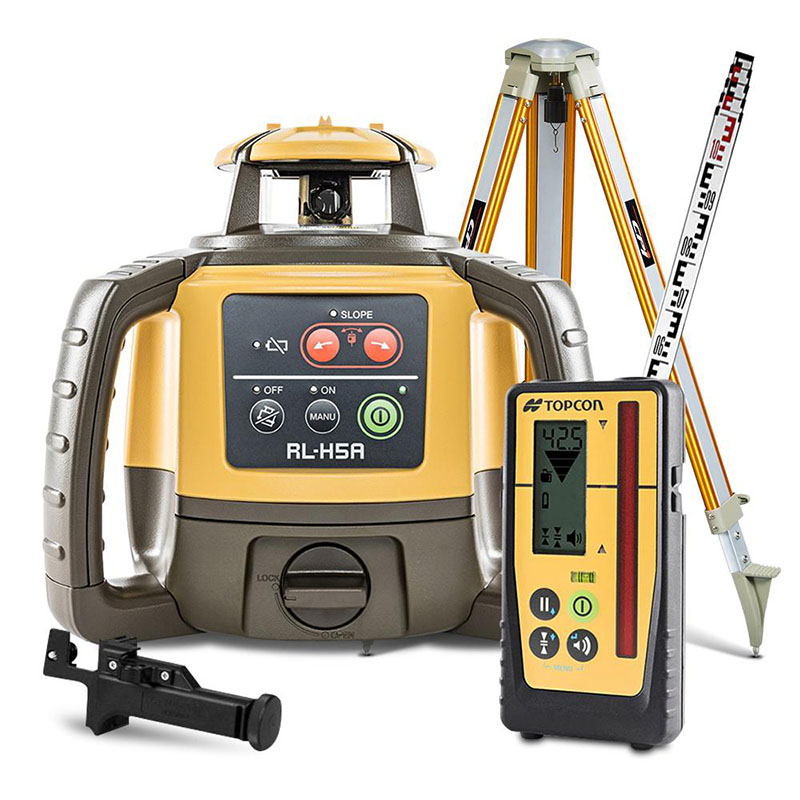

Topcon 1021200-17TS Red Beam Rotary Laser Level Kit with Tripod and Surveyor Staff

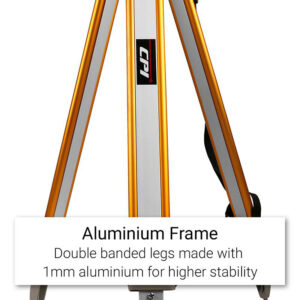

The CPI Heavy Duty Dome Head Tripod is an excellent choice for levels, lasers, and construction theodolites. It features a triangular head and a 5/8″ fixing screw with a hook for a plumb bob. The heavy-duty casting ensures durability and wear resistance on all terrains. The tripod is electrostatically powder painted for a long-lasting finish. It also comes with a heavy-duty poly-webbing shoulder strap for easy transportation. The pointed feet of the tripod make it suitable for use on tough terrains.

Features:
Dome Head
Telescopic Extension
Quick Release Plate
Multi Function Hook
Pointed Feet
Leg Clips
Lightweight Aluminium Alloy Body

Designed for a wide variety of applications, the new RL-H5 series are the next generation of rotating lasers from Australia’s Number 1 rotating laser brand Topcon.

The new RL-H5A is the replacement for Topcon’s market leading RL-H4C. It can be used for horizontal and sloping laser applications. Slopes up to ±5% can be used in either the X or Y axis.

Grading, excavating and general construction projects are all perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the RL-H5A a great match with any machine mounted laser sensor.

The RL-H5A’s popularity lies in its ease of use. With electronic self-levelling, you press the power button and begin levelling work in seconds. If the RL-H5A gets disturbed on the job, it relevels itself automatically. The self-levelling motors are accurate to ±10 arc seconds.

The RL-H5A excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite.With efficient power usage, the RL-H5A has a long battery life. The unit also gives you the option of two forms of power, 100 hours of continuous usage with D cell (4 x) batteries (included), or 60 hours with the optional rechargeable (Ni-MH) battery pack.

The RL-H5A is “jobsite tough” and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5 year guarantee which is the best factory warranty in the industry.

Includes:
Topcon RL-H5A Rotating Laser Level
Topcon LS-100D Receiver (Millimetre)
Topcon Receiver Clamp
4 x D-Cell Alkaline Batteries
Carry Case
Operator Manual
Australian Calibration Certificate
