$1,749.00
Accuracy: H: ±10 arc seconds
Self-Levelling Range: Horizontal ±5°
Working Area: 800m
Rotation Speed: 600 rpm
Dust/Water Rating: IP66
Operating Time: Alkaline (100 hours) ; Ni-MH (60 hours)
Operating Temperature: -20°C to 50°C
Item ID: W191340
Model: RL-H5A

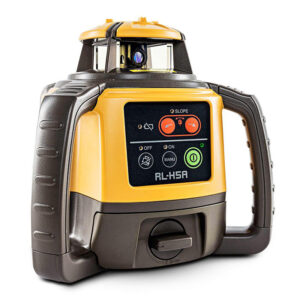

The RL-H5A, part of the new RL-H5 series by Topcon, is a versatile rotating laser suitable for a wide range of applications. It replaces the popular RL-H4C and is ideal for horizontal and sloping laser tasks. It can handle slopes up to ±5% in the X or Y axis, making it perfect for grading, excavating, and general construction projects. The “Slope Matching” feature allows for easy grade checking on flat and sloped surfaces. With a rotation speed of 600 rpm, it is compatible with machine-mounted laser sensors. The RL-H5A is highly regarded for its user-friendly nature. It features electronic self-leveling, allowing for quick setup with the press of a button. If the laser is disturbed, it will automatically relevel itself. The self-leveling motors are accurate to ±10 arc seconds. With its long-range operation, the RL-H5A can shoot elevations up to 400m and cover an 800m diameter jobsite. It has efficient power usage, offering a long battery life. The unit can be powered by either D-cell batteries (included) for 100 hours of continuous usage or the optional rechargeable (Ni-MH) battery pack for 60 hours. The RL-H5A is built to withstand harsh job site conditions with its IP66 rating, making it dustproof and resistant to sudden showers and heavy rainfall. Topcon provides a 5-year guarantee, the best factory warranty in the industry, demonstrating their confidence in the reliability and accuracy of the RL-H5A.
Includes:

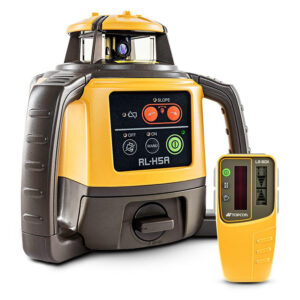

Topcon RL-H5A Rotating Laser Level
Topcon LS-80X Receiver
Topcon Receiver Clamp
4 x D-Cell Alkaline Batteries
Carry Case
Operator Manual
Australian Calibration Certificate
Laser Levels
TOPCON RL-H5A ROTARY LASER WITH SLOPE RECHARGEABLE WITH STANDARD LS-80X RECEIVER 1021200-46
